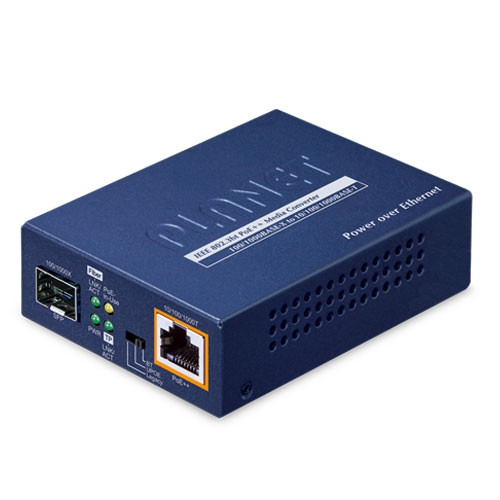

GUP-805A-60W
- SKU:
- GUP-805A-60W
- 1-Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt PoE++ Media Converter (60W 802.3bt Type-3/UPoE/Legacy mode support via DIP switch, compact size) -w/external power adapter included
NEW
Datasheet Download
802.3bt PoE++ 60-watt Power over 4-pair UTP Solution
As PLANET GUP-805A-60W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
With a total power budget of up to 60 watts for different kinds of PoE applications, the GUP-805A-60W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
|
Model
|
PoE Standard
|
PoE Budget
|
LAN Port Speed
|
SFP Slot Speed
|
|
GUP-805A-60W
|
IEEE 802.3af/at/bt
|
60 watts
|
10M/100M/1000Mbps
|
100M/1000BASE-X
|
High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-60W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-60W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:
|
Optic Mode
|
Connector Type
|
Distance
|
|
Multi-mode
|
Duplex LC | 220m/550m/2km |
|
Single mode
|
Duplex LC
|
20/40/60/80/120km
|
|
Single mode WDM
|
Simplex LC
|
2/10/20/40/80/120km
|
802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-60W provides one DIP switch for multi-PoE operation modes that include 60-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode
|
PoE Mode
|
Function
|
|
BT
|
This mode fully supports IEEE 802.3af/at/bt standards.
|
|
UPOE
|
This mode fully supports Cisco UPoE standards or PoH standards.
|
|
Legacy
|
The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard.
This protects against damage to the PDs as the right PoE mode is applied.
|
